Maxiwatt High Load cartridges, which have proven effective for 50 years in thousands of applications and which few manufacturers can currently produce, have a maximum temperature of 1000º.
New applications developed in recent years require higher temperatures. Maxiwatt has developed a complete line of cartridge heaters that technologically reach a critical temperature of 1000º with unprecedented reliability.
Extreme double-pass compression, more Nickel Chrome 80/20 wire, a new extremely pure magnesium oxide, Incoloy® 800 nickel-iron-chrome alloy tube sheath, with other innovations make the new cartridges more durable than any other type of cartridge.

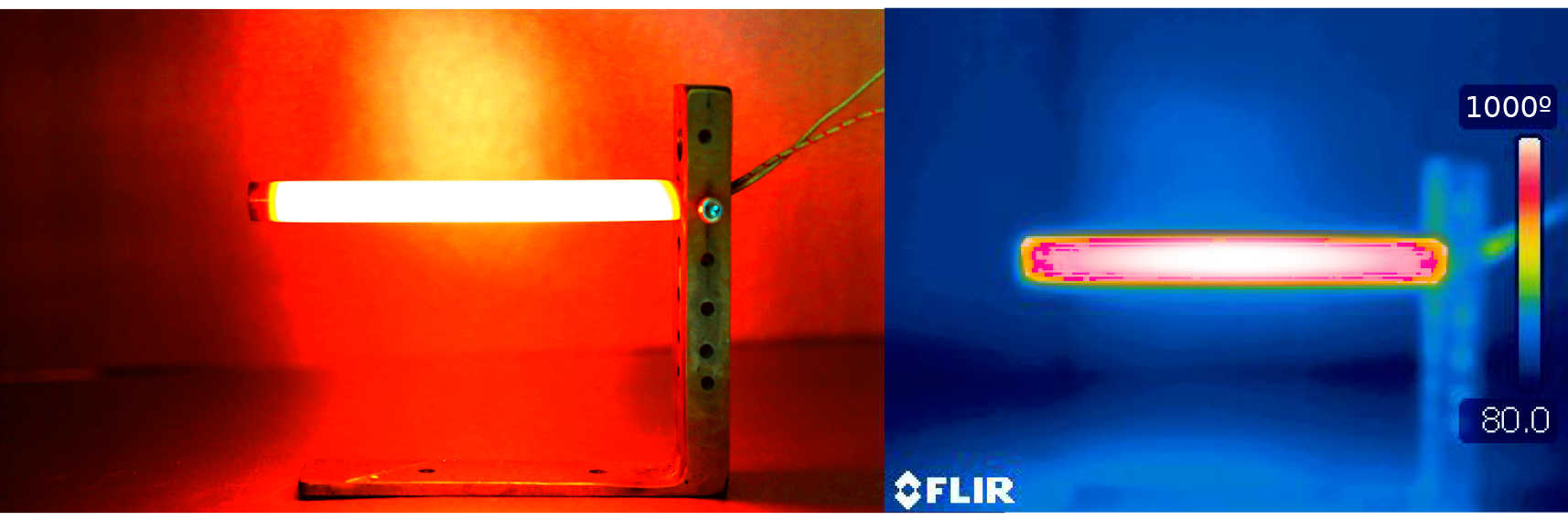

Tests conducted in laboratory with thermal camera
All ULTRAWATT cartridges must be housed inside holes with H7 tolerance.
The full range of existing finishes and accessories such as ISO, UL, CSA certification for high load cartridges are also available for the new ULTRAWATT cartridges.
| Heat Intensity | Do not exceed 60W/cm2 |
| Power | Depends on dimensions |
| Leakage current (cold) | <= 0.1mA to 242 v. |
| Insulation (cold) | <= 5mΩ to 500 V |
| Dielectric Strength | 1500v. 1/sec |
| Operating temperature | 1000ºC max |
| Length tolerance | +/-1.5 % |
| Diameter tolerance | -0.02 to -0.06 mm |
| Connection cut tolerance | +/-15 mm |
| Power tolerance (w) | +5% -10% |
| Cold zones | Depende de long, y diámetros 5-15 mm |

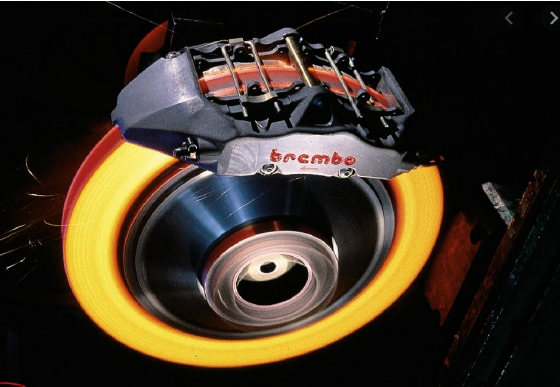

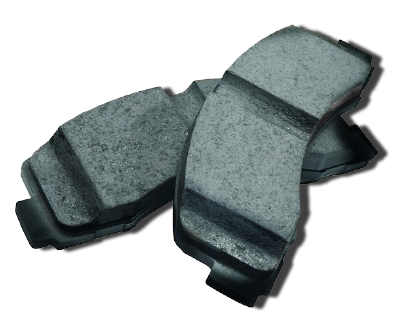

Brake pads requiring extreme temperatures for their manufacture.
